Flexibility and functionality

The Essington is a wonderful sun-drenched home, offering great flexibility and functionality. The grand Living room flows into the Dining and wrap-around Kitchen with Island bench, offering ample storage and space to cook up a storm. The Alfresco is perfect for entertaining due to accessibility to the Dining or Children’s Activity Room, bringing the outside in. The impressive Master Suite is large in proportion and balanced in design, offering outdoor access, perfect for a private, parent’s courtyard. The Essington is a wonderfully designed home for a growing, active family.

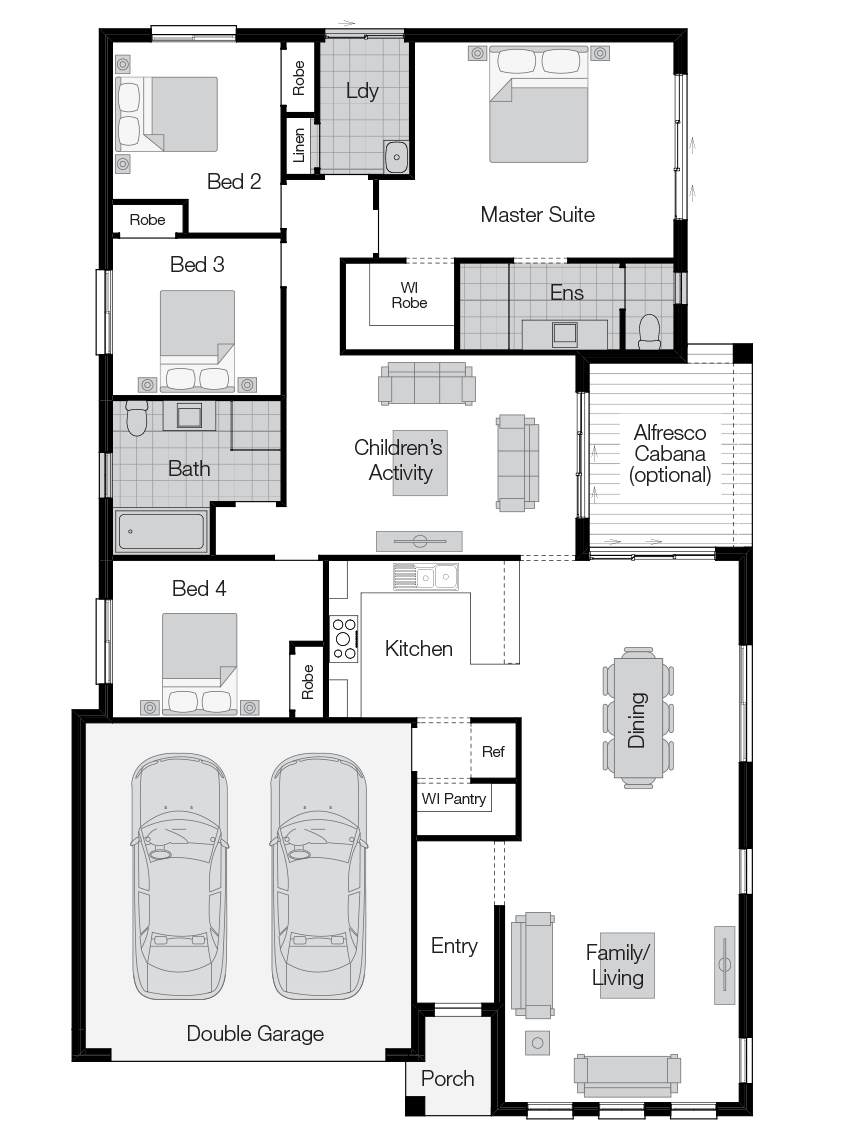

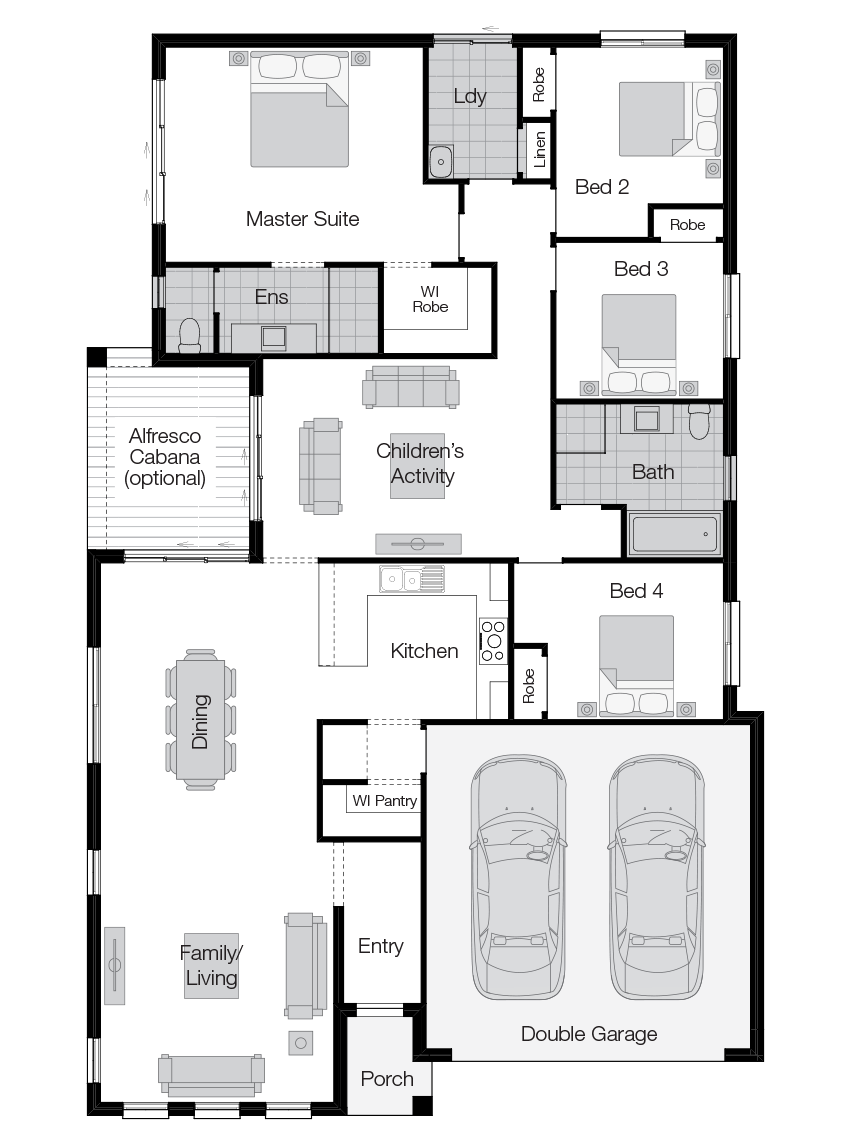

Floor Plans

Show upgrades
Essington floorplan rhs
Essington floorplan rhs
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area does NOT include alfresco if optional.
Block Width
House Width
House Length

Room Dimensions

4.3 x 4.8
4.0 x 5.2
Master Suite
4.8 x 4.0
Bed 2
3.1 x 2.9
Bed 3
2.9 x 3.1
Bed 4
3.3 x 2.9
Home Theatre
5.3 x 3.7
Alfresco Cabana (optional)
3.0 x 3.7
6.0 x 6.0

Additional Features

  • Walk-In Robe
  • Walk-In Pantry
  • U-Shape Kitchen
  • Children's Activity


Please complete the enquiry form and someone from our team will be in contact within 24 hours.

Alternatively you can give a building and design consultant a call on
1300 595 050.


White melamine cupboard internal finish
Overhead cupboards adjacent to rangehood and above fridge space
Melamine cupboards with matt or sheen finish
Selection of quality Kitchen cabinet handles
20mm reconstituted stone finish to all Kitchen bench tops from the Smartstone Essentials Range Including Butler's pantry if applicable
AFA flow inset double bowl stainless steel sink
Teknobili Gooseneck polished chrome sink mixer
Ceramic tiled splashback from Builder’s Range
Microwave shelf with single power point
ILVE Dishwasher (IVFSD61) stainless steel
ILVE Cooktop (ILC604B) electric ceramic cooktop
ILVE Canopy Rangehood (IVN900N) stainless steel
ILVE Underbench Oven (ILO6ODCX) electric stainless steel
Thermann 250 litre Electric hot water unit
Joinery made built-in wardrobes with top shelf and hanging rail
Linen cupboard with full shelving
42x12 Bevelled MDF architraves and 67x12 Bevelled MDF skirting with paint finish
2400mm high ceiling heights
55mm classic cove cornice throughout
2040mm high flush panel internal swinging doors throughout with paint finish
Lockwood lever door handles throughout
Cushioned door stops
Taubmans ‘Endure’ to all internal walls –3 coat system
Flat acrylic paint to ceilings
Laundry - 600mm tiled splashback behind tub
Laundry- Monaco 45L laundry trough and cabinet
Laundry- Posh polished chrome mixer tap
Laundry- Ceramic floor tiles from Builder’s Range, 600mm tiled splashback behind tub and 100mm skirting tile
TV connection point, 1 to Living and 1 to Home Theatre (design specific)
Single phase meter box
Clipsal Iconic power point and light switches
Hard wired smoke detectors
Daikin 7KW reverse cycle heat pump
2x double power points to Master Suite
1x double power point to all other bedrooms
1x light point to each room
5x single power points
1x 4 heat/fan/light to each bathroom
Caroma Newbury island bath in tiled hob
Mizu Drift or Posh Solus polished chrome mixers
Posh Domaine close coupled rimless toilet
Joinery made melamine vanity unit with 20mm Smartstone Essentials Range benchtop & The Gap semi inset basin
Mizu Drift or Posh Solus polished chrome towel rail, soap dish & toilet roll holder
Polished edge vanity mirrors directly on top of vanity top to match the height of shower screens
Ceramic floor and wall tiles from standard Builder’s Range. 2000mm high tiling to shower enclosures, tiling above bath hob to align with the top of the vanity
Your choice of Austral bricks from Homestead, Access (selected colours), Yarra or Everyday Life range
D Insulation – R2.0 batts to walls + R4.1 batts to ceilings
House name plaque
450mm perimeter eaves
MGP10 Pine framing to all structural components, 90x35 framing to internal and external walls. Timber composite engineered roof trusses
Double glazed aluminium awning windows in a choice of powder-coat colour finishes
Standard clear glazing to all aluminium windows and sliding aluminium doors with translucent glazing to Bathroom, Ensuite and WC windows
Colorbond roof, fascia and guttering in choice of colours
Corinthian Madison door with Lockwood Nexion handle
Colorbond Panel Lift door in your choice of colour with auto controller
Aluminum standard entry door frames in your choice of powder-coat colours
6 year structural warranty period
90 day maintenance period
Development and building application fees
TAS water authority application fees
HIA new home building contracts
Site soil investigation report by a geotechnical engineer
Structural engineer designed ‘S’ classification concrete slab where applicable
Site contour survey by a registered surveyor
Energy assessment report
Appointment with your personal MyChoice Design Studio, Design Consultant. They will assist in selecting your colours, finishes and electrical layout
