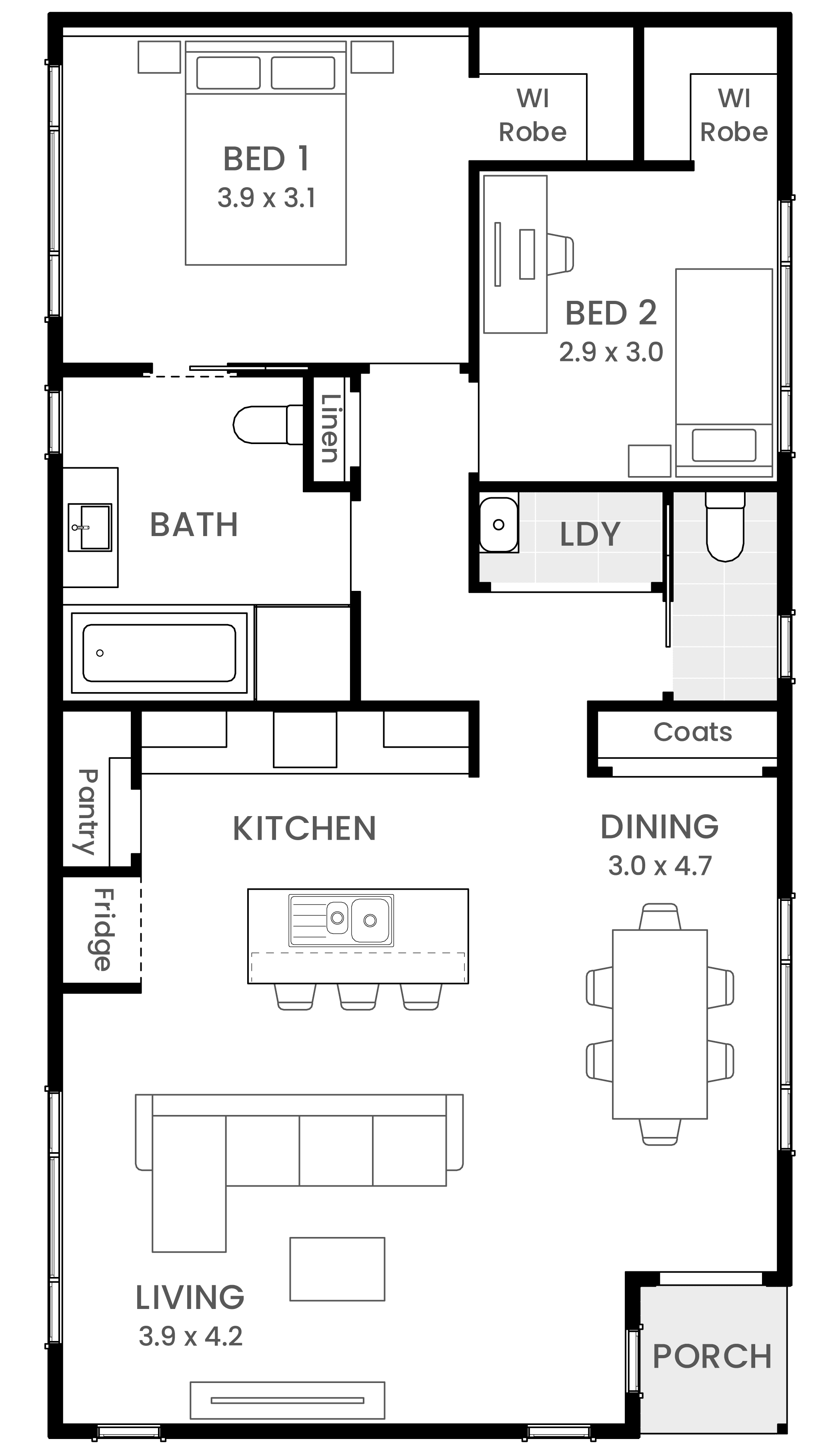

Floorplan

Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Some options shown are only available if other additional options are also purchased and may not be available as a standalone item. Please check with your Building & Design Consultant for details. Total (m²) area does not include alfresco if optional. This floor plan is for illustrative purposes only and is subject to change and product substitution. Details, aesthetics, and products featured may no longer be available or suitable at the time of contract specification. Please speak to your Building and Design Consultant about your bespoke tender, selections, inclusions and plans.

Barn House Range

Barn House 10B

10m

Barn House Range

Barn House 10B

10m

House Dimensions

House Width: 7m House Depth: 13.5m Total: 94.5m²

Room Dimensions

Living

3.9m x 4.2m

Dining

3m x 4.7m

Bed 1

3.9m x 3.1m

Bed 2

2.9m x 3m

Facades

1 different Facades to choose from.

Barn Facade

Note: Images of facades shown are a guide only. Material finishes, dimensions and colours shown are purely an expression of the artist and subject to change depending on availability and design updates. Please refer to our current price list and specifications for façade finishes allowed in published price.

Inclusions

External

External material full height 133mm Axon Cladding with 3 coat paint system
MGP10 Pine framing to all structural components, 90x35 framing to internal and external walls. Timber composite engineered roof trusses
No eaves
Colorbond fascia and guttering in choice of colours
Colorbond steel clad roofing
Insulation - R2.0 batts to external walls + R4.1 batts to ceilings
Trilock Contemporary or Traditional Double cylinder (satin or bright chrome)
Up to 500mm of site preparation

Balconies and decks

Refer to plans for external balustrade detail to facade
Refer to plans for facade balcony construction details and finishes
Where required or requested decks and access stairs will be nominated as treated pine including handrail unless otherwise specified

Stairs

Carpeted Stairs on MDF treads and risers
Slimline stairwell expansion joint
1000mm plastered dwarf wall balustrade

External Doors

Hume NEX 30 entry door
Colorbond sectional panel lift door in your choice of colours with auto controller
Aluminum standard entry door frames in your choice of 6 powder coat colours

Electrical

1 x TV connection point to Living
Single phase meter box
Clipsal Iconic power point & light switches
Hard wired smoke detectors
Haier Tempo wall mounted split system
2x double power points to Master Suite
1x double power point to all other bedrooms
Provide 15 down lights for designs Under 150m2
Provide 25 downlights to designs Over 150m2
5x single power points
1x exhaust fan over each shower
1x exhaust fan to internal WC or Laundry (without window)
1 x 3in1 heater/light/exhaust to bathroom & ensuite

Kitchen

White melamine cupboard internal finish
Melamine cupboards with matt finish
Selection of quality kitchen cabinet handles
Builders range 20mm Caesarstone bench tops to Kitchen
Posh Solus MkIII 1.3 overmount sink
Mizu Drift Polished Chrome Sink Mixer
Ceramic tiled splashback from Builder’s Range
Overhead cupboards adjacent to rangehood
Microwave shelf with single power point

Appliances

BARN HOUSE 8, 10A AND 10 B

Fisher & Paykel 60cm Built-In Oven (OB60SC7LEB1)
Fisher & Paykel 60cm Electric Cooktop (CE604DTB1)
Fisher & Paykel 60cm Wall Chimney Pyramid Rangehood (HC60PLX4)
Fisher & Paykel 60cm stainless steel Dishwasher (DW60FC1X2)

BARNHOUSE 14, 17, 20 AND 24

Fisher & Paykel 90cm 9 function Built-In Oven (OB90S9MEX4)
Fisher & Paykel 90cm 5 element Electric Cooktop (CE905CBX2)
Fisher & Paykel 90cm Wall Rangehood Box Chimney (HC90DCXB4)
Fisher & Paykel 60cm stainless steel Dishwasher (DW60FC1X2)
Rinnai Hotflo 250L Electric 3.6kW HWS

Bathroom & Ensuite

Posh Domaine Inset Bath in tiled hob - design specific
Mizu Drift polished chrome mixers
Posh Domaine close coupled rimless toilet
Tiled shower base with Builder’s Range floor tiles central waste
Small shower niches to shower/s
Joinery made melamine vanity unit and gap semi inset basin
Mizu drift double towel rail 750mm chrome to bathroom and 2x Mizu drift robe hooks chrome to ensuite
Mizu drift straight toilet roll holder
Wall mounted or floor style vanity - joiner made
Polished edge vanity mirror directly on top of vanity top to match the height of semi frameless shower screen
Ceramic floor and wall tiles from standard Builder’s Range. 2000mm high tiling to shower enclosures, tiling above bath hob to align with the top of the vanity. 100mm skirting tile
Grab rail provision in bathroom, ensuite and WC in accordance with livable housing requirements

Laundry

Ceramic floor tiles from Builder’s Range
100mm skirting tile
Posh Bristol standard laundry trough & cabinet 45L
Base Sink Mixer MKII 6 star
600mm tiled splashback behind tub

Flooring

Builders range carpet to bedrooms, leisure, study, first floor hall and rear halls - (design specific)
Timber laminate flooring to entry, entry hall, open living space, kitchen, WIP/butlers

Internal

Joinery made built-in wardrobes with Shelf and hanging rail to all robes
Linen cupboard with 4 shelves
42x12mm Bevelled MDF architraves and 67x12 Bevelled MDF skirting with paint finish
2550mm high ceiling heights
Square set plaster to living areas and hallways
55mm classic cove cornice to remainder of home
2040mm high flush panel internal swinging doors throughout with paint finish
100mm wide x 1200mm high plaster wall located full length behind bed
Gainsborough door furniture in satin or bright chrome from the Choices range
Cushioned door stops
Haymes ‘Expressions’ to all internal walls – 3 coat system in matt finish
Flat acrylic paint to ceilings

Building Inclusions

6 year structural warranty period
90 day maintenance period
Built by qualified tradespeople
Development and building application fees
TAS water authority application fees
HIA new home building contract
Site soil investigation report by a geotechnical engineer
Structural engineer designed ‘M’ classification concrete slab where applicable
Site contour survey by a registered surveyor
Energy assessment report
Appointment with your personal MyChoice Design Studio, Design Consultant. They will assist in selecting your colours, finishes and electrical layout
Up to 10/lm of sewer, stormwater, and single-phase electrical connection
