Floorplan

Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Some options shown are only available if other additional options are also purchased and may not be available as a standalone item. Please check with your Building & Design Consultant for details. Total (m²) area does not include alfresco if optional. This floor plan is for illustrative purposes only and is subject to change and product substitution. Details, aesthetics, and products featured may no longer be available or suitable at the time of contract specification. Please speak to your Building and Design Consultant about your bespoke tender, selections, inclusions and plans.

Now by Wilson

Riva 9

2
1
0
1
0
11m

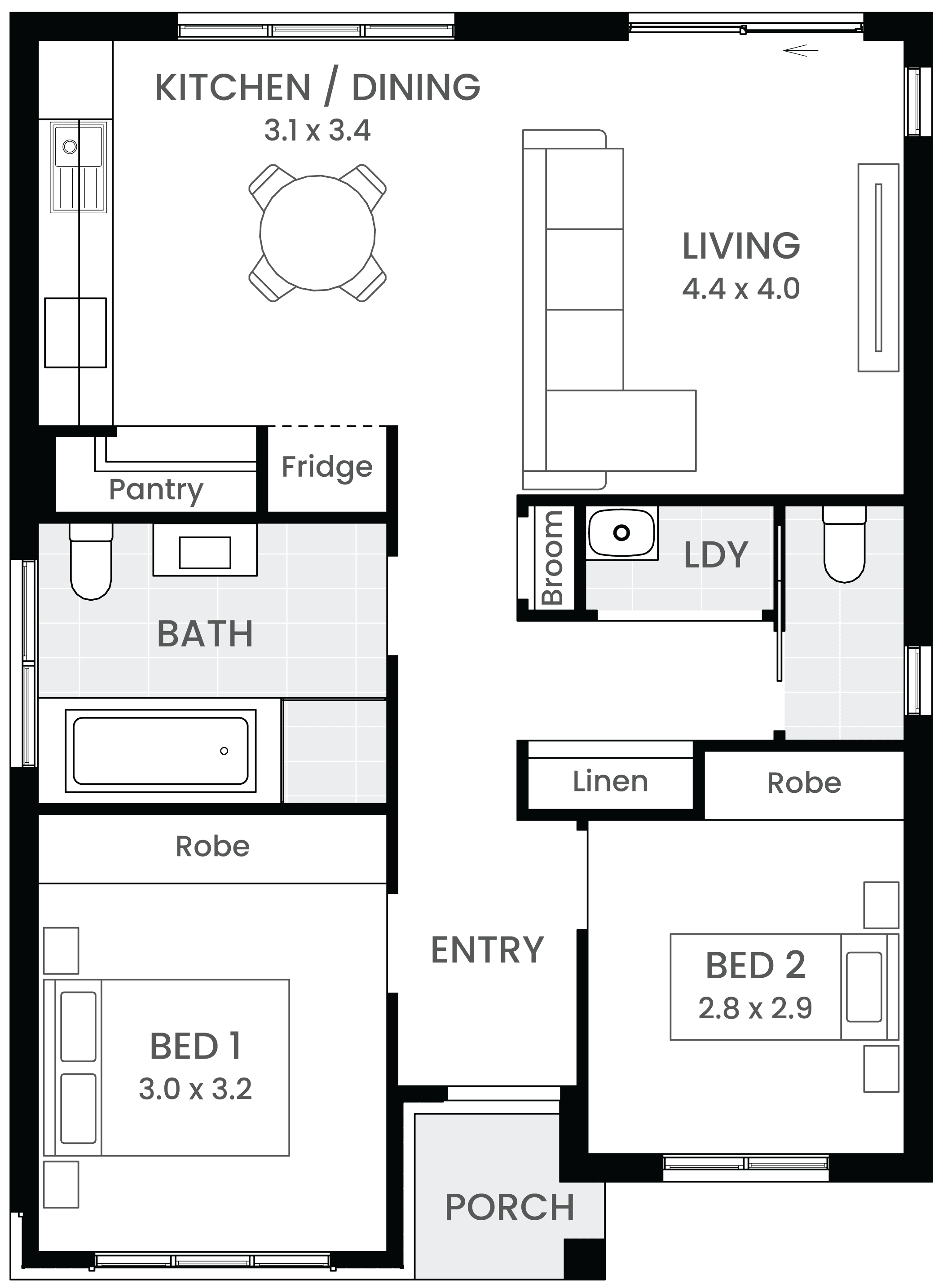

NOW Riva 9 floorplan
Now by Wilson

Riva 9

2
1
0
1
0
11m
House Dimensions
House Width: 8m House Depth: 11m Total: 85.6m²
Room Dimensions
Kitchen/Dining
2.5m x 3.4m
Living
4.4m x 4m
Bed 1
3m x 3.2m
Bed 2
2.8m x 2.9m

Facades

Note: Images of facades shown are a guide only. Material finishes, dimensions and colours shown are purely an expression of the artist and subject to change depending on availability and design updates. Please refer to our current price list and specifications for façade finishes allowed in published price.

01 / 04
Riva 9 Daintree facade in Classic style
Riva 9 Daintree facade in Coastal style

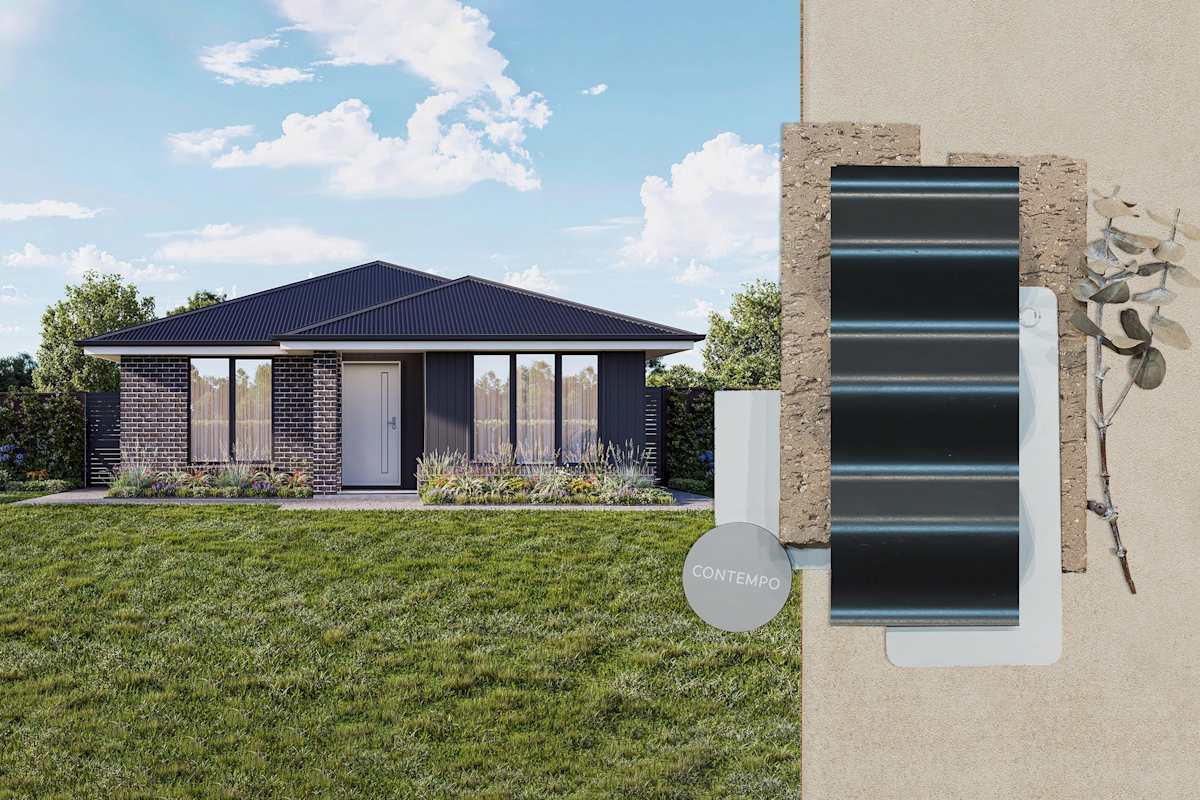

Riva 9 Daintree facade in Contempo style

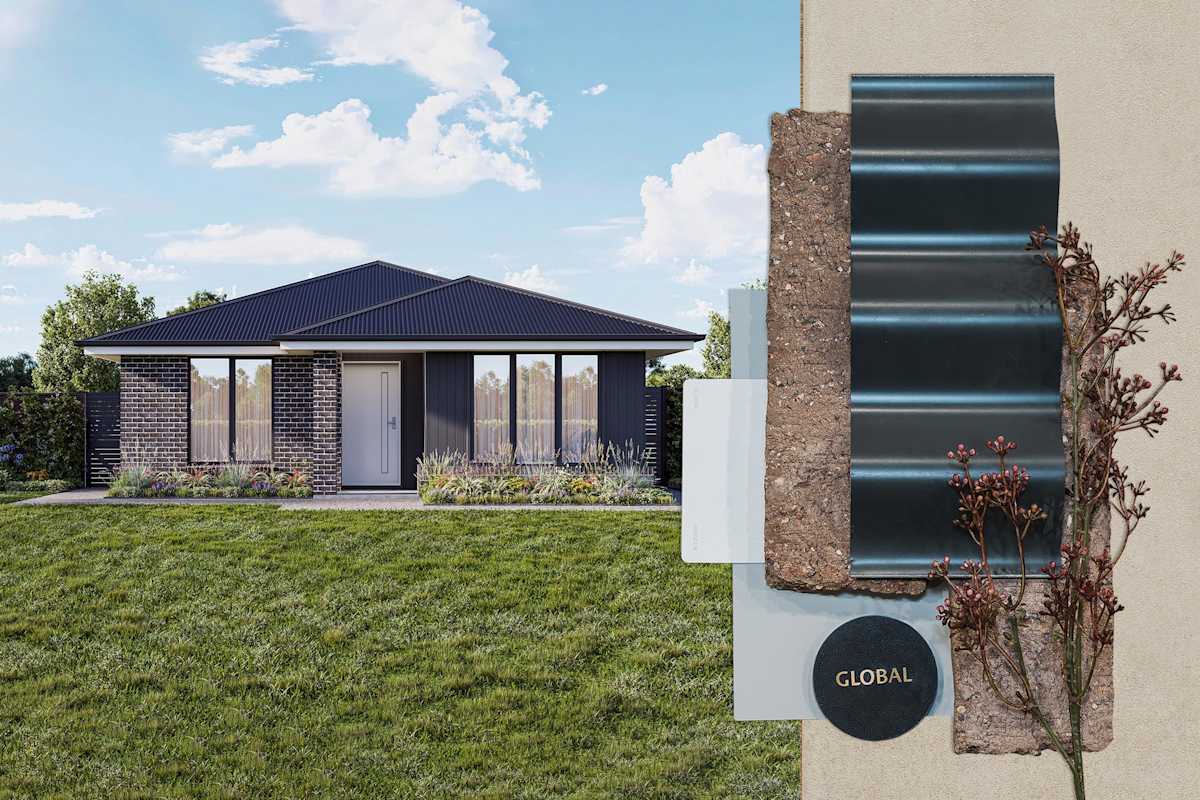

Riva 9 Daintree facade in Global style
Riva 9 Daintree facade

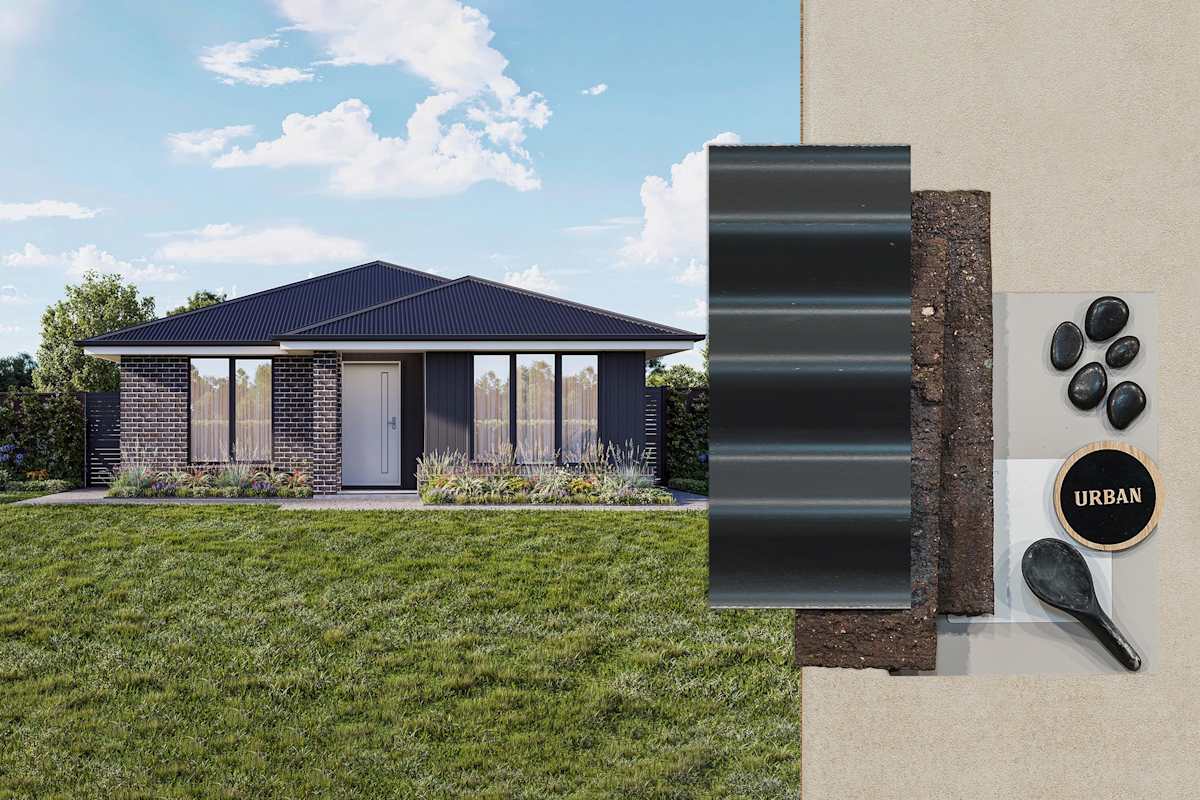

Riva 9 Daintree facade in Urban style

Daintree Facade

Riva 9 Halifax Facade in Classic style
Riva 9 Halifax Facade in Coastal style
Riva 9 Halifax Facade in Contempo style
Riva 9 Halifax Facade in Global style
Riva 9 Halifax Facade in Luxe style
Riva 9 Halifax Facade in Urban style

Halifax Facade

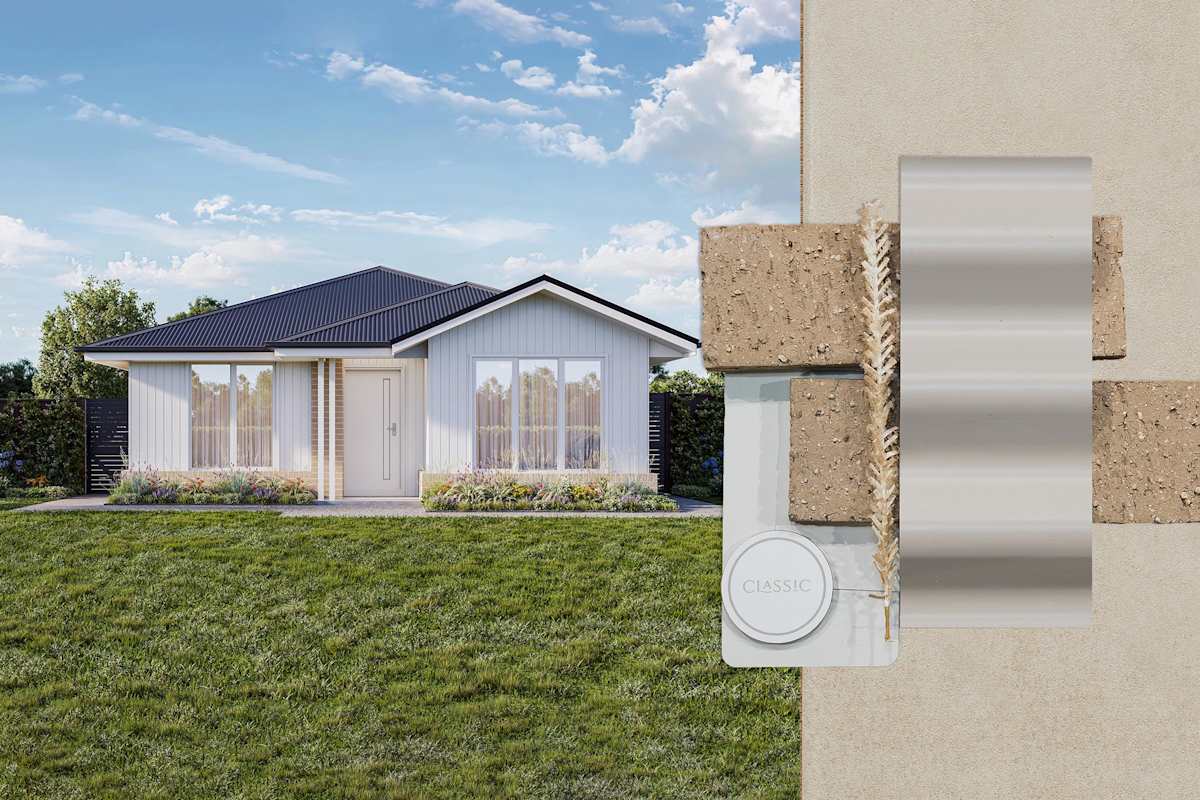

Riva 9 Oakwood facade in Classic style

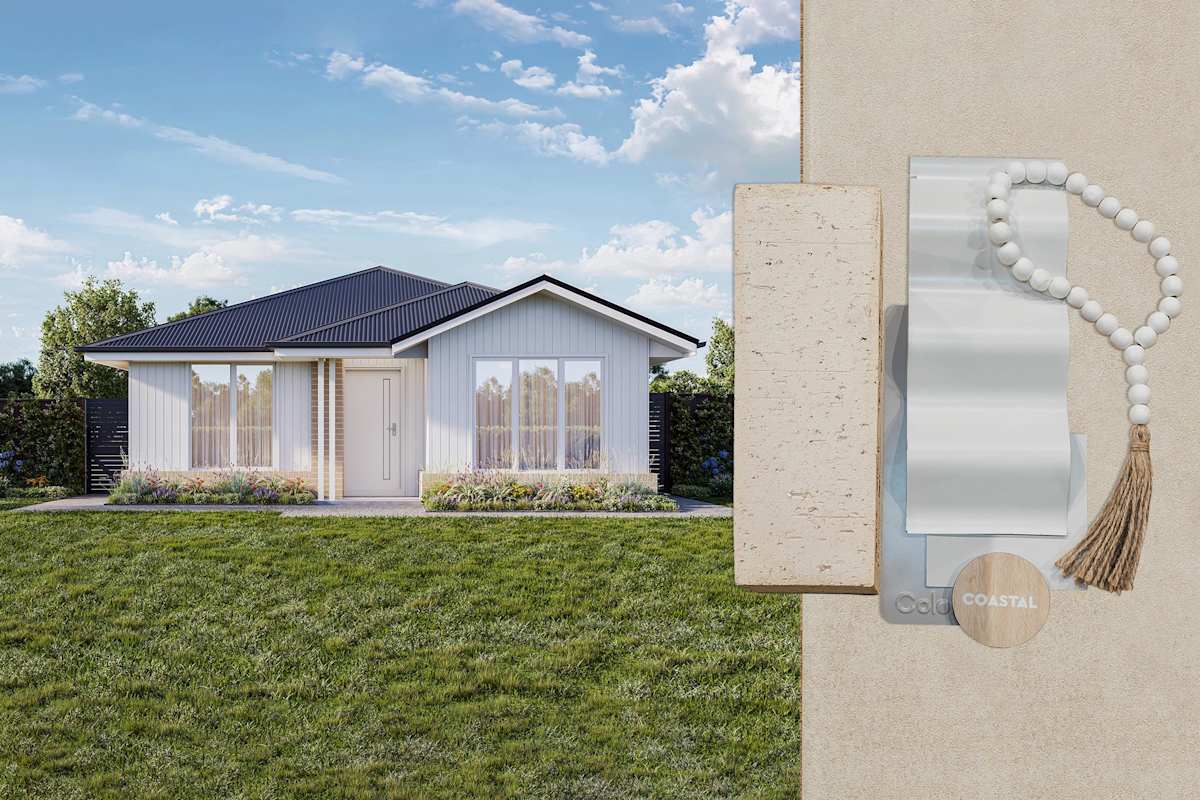

Riva 9 Oakwood facade in Coastal style

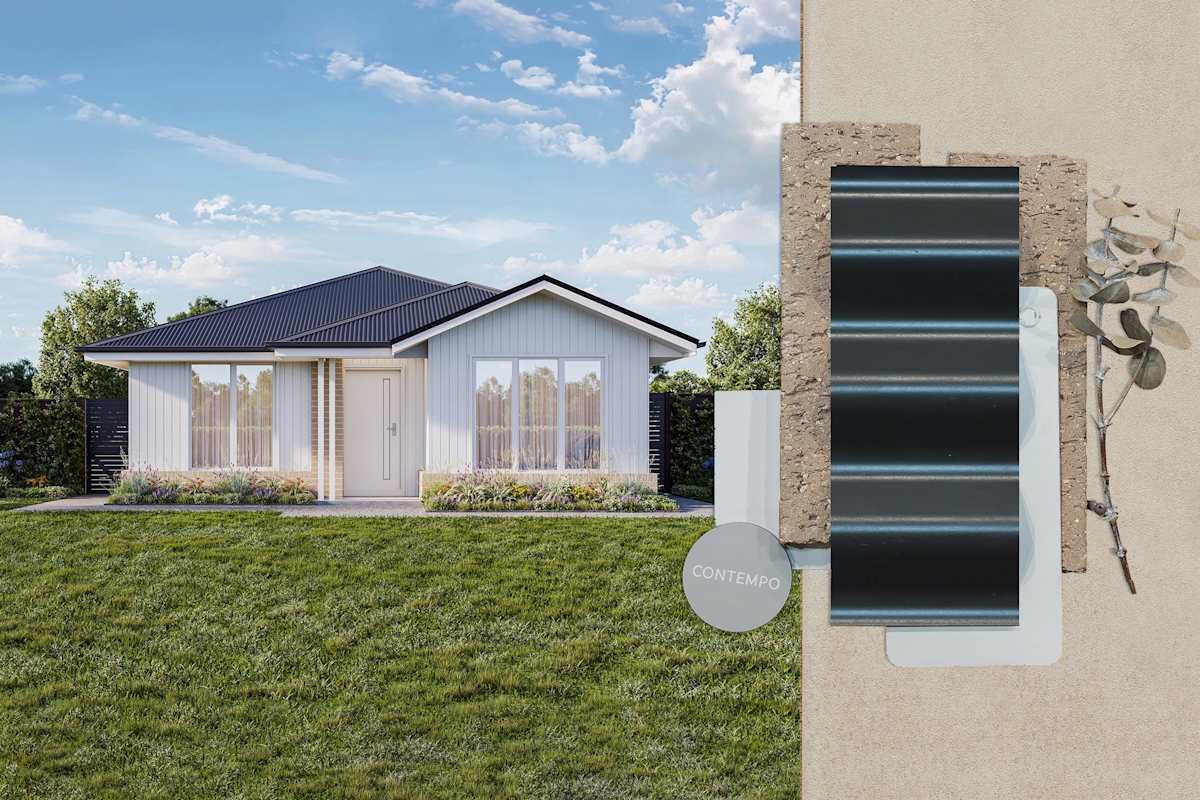

Riva 9 Oakwood facade in Contempo style
Riva 9 Oakwood facade in Global style
Riva 9 Oakwood facade in Luxe style
Riva 9 Oakwood facade in Urban style

Oakwood Facade

Riva 9 Riverside facade in Classic style
Riva 9 Riverside facade in Coastal style

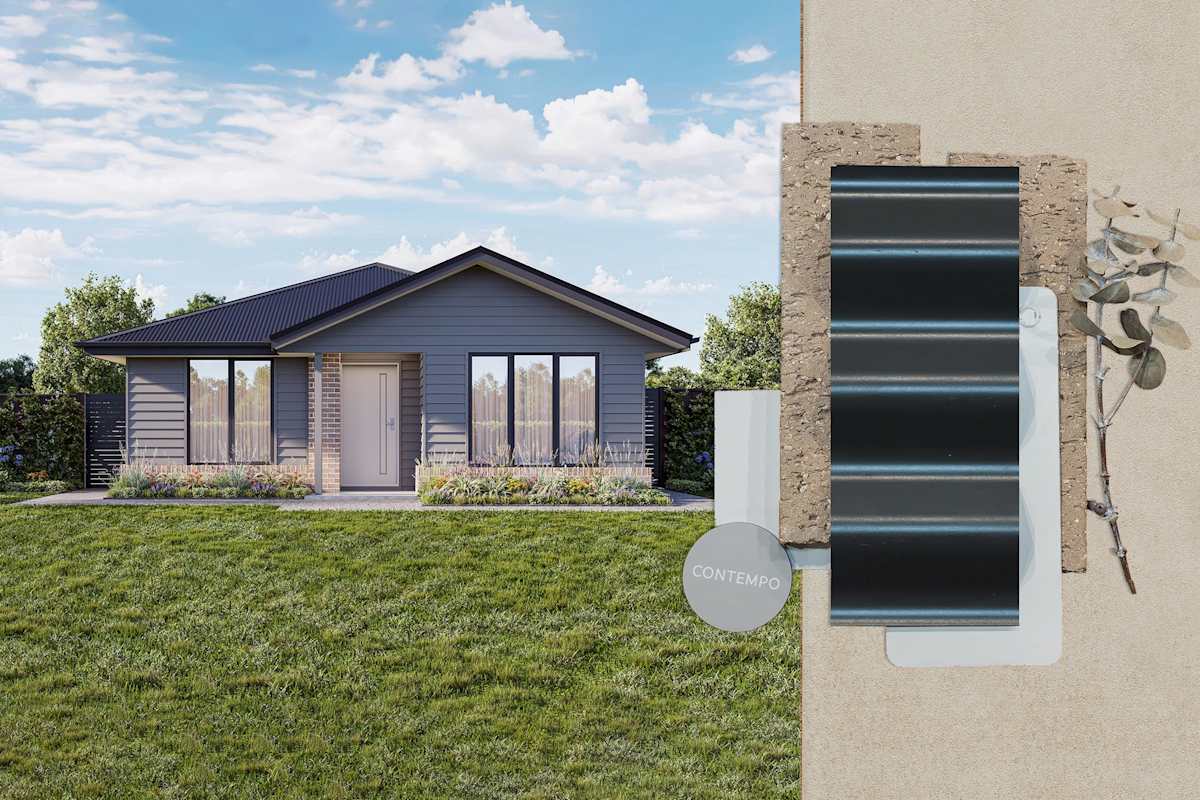

Riva 9 Riverside facade in Contempo style
Riva 9 Riverside facade in Global style

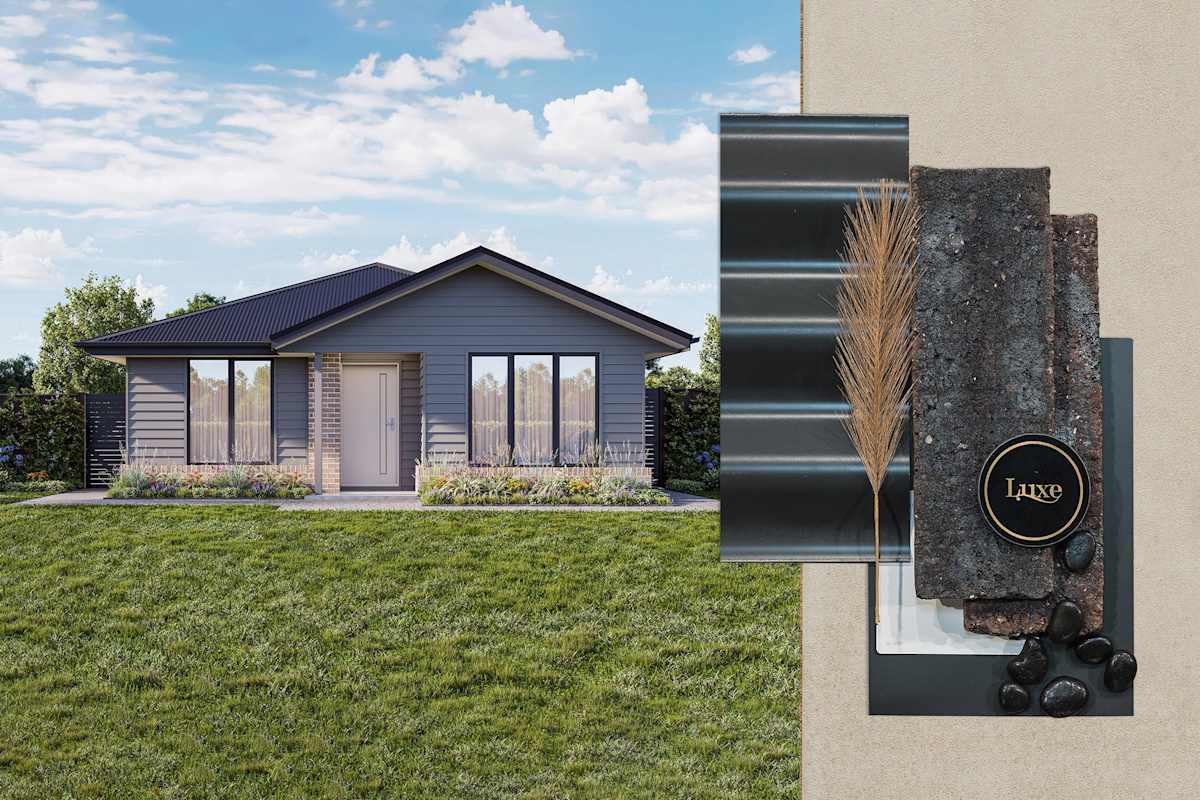

Riva 9 Riverside facade in Luxe style
Riva 9 Riverside facade in Urban style

Riverside Facade

Inclusions

External

  • Wide selection of bricks as available in selectable external colour schemes
  • MGP10 Pine framing to all structural components, 90x35 framing to internal walls. Timber composite engineered roof trusses
  • 450 Perimeter Eaves (design Specific) and Highlight
  • Double glazed aluminum windows and sliding doors in a choice of powder-coat colour finishes
  • Standard clear glazing to all aluminium windows and sliding aluminium doors with translucent glazing to Bathroom, Ensuite and WC windows
  • Slotted Quad Gutter & Fascia available in a range of Colorbond colours
  • Colorbond steel roofing including sarking. Includes 23 degree pitch
  • Permeable wall wrap to all external walls. Insulation – R2.0 batts to walls + R4.1 batts to ceilings
  • Painted PVC downpipes to ground level
  • Two externals taps - to front and rear
  • Fully lined plaster ceiling to porch Includes 1 downlight
  • Lightweight infil over garage

Balconies and decks

  • Refer to plan for external handrail detail
  • Refer to selected home plans for balcony construction details and finishes
  • Balcony surfaces to be Modwood decking unless otherwise specified or drawn
  • Where required or requested, decks and access stairs will be treated pine including handrail, unless otherwise specified

Stairs

  • Carpeted stairs, MDF, treads and risers

External Doors

  • 920mm Hume Vaucluse door
  • Gainsborough Bela, Adel or Tristan lockset in satin or bright chrome
  • Flush Panel external grade door to garage with Gainsborough Bela, Adel or Tristan range of door furniture (design specific)
  • Aluminum glass sliding door to Laundry (size design specific)
  • Sectional overhead automatic garage door with 2 remotes and 1 wall controller (size design specific)
  • Aluminum hinged door frames in your choice of powder-coat finishes

Electrical

  • One TV connection point to Living
  • Single phase meter box
  • Clipsal Iconic power point and light switches
  • Hard wired smoke detectors
  • Haier Tempo 7.0KW wall-mounted split system
  • One double power point to all rooms.
  • One light point with batten holder & bulb per room
  • Single powerpoint to fridge, microwave space, dishwasher, rangehood & garage
  • Exhaust fans to all bathrooms & internal WCs
  • One phone point
  • One downlight to front porch
  • One batten holder to Alfresco/outdoor living (design specific)
  • One downlight to external door (e.g. laundry)
  • Externally ducted exhaust fans (where required for NCC compliance)
  • 1 x 2 in 1 Heater & Light to each bathroom or ensuite

Kitchen

  • White melamine cupboard internal finish
  • Choose from a wide range of standard melamine colours to your cupboards, includes up to two colours with matt finish
  • Soft close hinges to cupboards only
  • Kitchen Handles as per selectable Internal Colour Schemes
  • Laminate benchtops with 35mm pencil round edge
  • Posh Bristol 1 & 1/3 Bowl Sink 1 Taphole Right Hand Bowl with Drainer Stainless Steel
  • Posh Solus Gooseneck Sink Mixer Tap Chrome (5 Star) Lead Free
  • Tiled splashback selection as available in selectable Internal Colour Schemes
  • Underbench handle Lincoln Sentry Range
  • Microwave box with single power point and pot drawer under
  • Walk In Pantry / Pantry (design specific) includes 4 white melamine shelves -2 x 300mm; 2 x 450mm deep

Appliance

  • HAIER 60cm, 7 function electric oven (HWO60S7MB6)
  • HAIER 60cm 4 zone touch control cooktop (HCE604TB3)
  • HAIER 60cm canopy Range Hood (HC60BLXI)
  • Dishwasher (provision only)
  • Microwave (provision only)
  • Rheem 160L electric HWS (1 bathroom)
  • Rheem 250L electric HWS (2 bathroom)

Bathroom & Ensuite

  • Decina Aztek MKII bath with tiled hob surround
  • Mixx shea Chrome Mixers. Includes basin mounted mixers, shower mixer and wall mounted bath mixer & spout set
  • Everhard classic close couple S Trap toilet
  • Tiled shower base with builders range floor tiles and central waste with Pivot 2000mm High Aluminium Chrome Shower Frame
  • KDK wall hung vanity unit, 1x taphole with overflow, 750mm, 900mm, 1200mm SB, 1200 DB (design specific) - SB included
  • Mixx round single towel rail to main bathroom, 2x robe hooks to ensuite (design specific) and toilet roll holder to all toilets
  • Contemporary frameless mirror to sit above all vanities. Width to match vanity
  • Wide tile selection available in selectable internal colour schemes with ceramic floor tiling, 100mm high skirting tiles, 2000mm high to showers and 300mm high above the bath hob to match the vanity.
  • Mixx Shea Rail Shower in Chrome
  • Grab rail provision in bathroom, ensuite and WC in accordance with livable housing requirements
  • Access panel - refer to standard drawings

Laundry

  • Everhard 42L freestanding laundry tub
  • Alpine chrome sink mixer
  • Wide Tile selection as available in selectable Internal Colour Schemes with 100mm high skirting tiles. And splashback above laundry tub
  • 1/4 turn MT 2015

Flooring

  • Builders range carpet to all bedrooms, secondary living spaces and hall
  • Timber laminate flooring to entry, entry hall, kitchen, dining and open living
  • Dunlop Governance 8mm underlay
  • Tiling to wet areas

Internal

  • Built-in wardrobes with top shelf and hanging rail
  • Linen cupboard with full shelving (4 shelves) 2 x 300mm; 2 x 450mm deep
  • 42x12mm Bevelled Primed MDF architraves and 67x12 Bevelled Primed MDF skirting with paint finish
  • 2400mm high ceiling heights
  • 55mm classic cove cornice throughout
  • 2040mm high flush panel internal swinging doors throughout with paint finish
  • Gainsborough Bela/Abel or Tristan lever set in satin or bright chrome
  • Gainsborough rectangle flush pull 392 to sliding cavity doors
  • Cushioned door stops
  • Haymes ‘Expressions’ to all internal walls – 3 coat system
  • Flat acrylic to ceilings
  • 600mm x 600mm concealed manhole
  • Pantry and wardrobe handles Gainsborough Bela/Abel or Tristan lever set
  • Slimline stairwell expansion joint
  • 1000mm plastered dwarf wall balustrade

Building Inclusions

  • Our CustomerCare team are with you before and after the Statutory 90 Day Liability Period
  • Development and building application fees
  • TAS water authority application fees
  • HIA new home building contract
  • Site soil investigation report by a geotechnical engineer
  • Structural engineer designed ‘M’ classification concrete slab where applicable
  • Site contour survey by a registered surveyor
  • Energy assessment report
  • Included 10 L/M of sewer, stormwater and single phase power.

Personalisation Upgrade Packs

NOW Kitchen Appliance Upgrade Pack

Kitchen Upgrade Pack

Premium 900mm stainless steel appliance package including a 5-zone ceramic cooktop, wall rangehood with box chimney, 10-function built-in oven, and dishwasher for enhanced performance and everyday convenience.
NOW Move-In Upgrade Pack

Move In Upgrade Pack

Appliance package including a bottom-mount refrigerator, 8.5kg front-load washing machine, 8kg heat pump dryer with stacking kit, combining everyday convenience with space-saving functionality.
NOW Electrical Upgrade Pack

Electrical Upgrade Pack

Electrical upgrade featuring white downlights throughout, a pendant light over the kitchen island bench, and five additional white Iconic double power points for enhanced style and functionality.
https://media.wilsonhomes.com.au/image/upload/v1785114169/content-images/now-upgrades/now-bathroom-upgrade-pack-1.jpg

Bathroom Upgrade Pack

Bathroom upgrade featuring a Posh Solus 1600mm freestanding back-to-wall bath, Aztex back-to-wall toilet, and 1200mm high wall tiling with selected style tiles to the bathroom and ensuite.
NOW Flooring Upgrade Pack

Ducted AC Upgrade

Experience year-round comfort with efficient, modern, heating and cooling, designed for smart connectivity and everyday living.
NOW Blind Upgrade Pack

Blinds Upgrade Pack

Roller block out blinds to all windows and sliding doors, as per the selected style.
NOW Flooring Upgrade Pack

Ceiling Height Upgrade

2550mm ceiling height upgrade throughout the home, enhancing natural light, space, and the overall sense of openness and luxury.
NOW Stone Benchtop Upgrade Pack

Stone Benchtop Upgrade Pack

Stone benchtop upgrade to the island bench and cooktop run, delivering a premium finish with enhanced durability and style.
NOW Square Set Ceiling Upgrade Pack

Square Set Ceiling Upgrade Pack

Square set ceiling finish throughout the home (excluding robes and garage), delivering a clean, modern aesthetic with streamlined architectural appeal.
