Floorplan

Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Some options shown are only available if other additional options are also purchased and may not be available as a standalone item. Please check with your Building & Design Consultant for details. Total (m²) area does not include alfresco if optional. This floor plan is for illustrative purposes only and is subject to change and product substitution. Details, aesthetics, and products featured may no longer be available or suitable at the time of contract specification. Please speak to your Building and Design Consultant about your bespoke tender, selections, inclusions and plans.

Designer Collection

Albany 20

3
2
0
2
2
14.6m

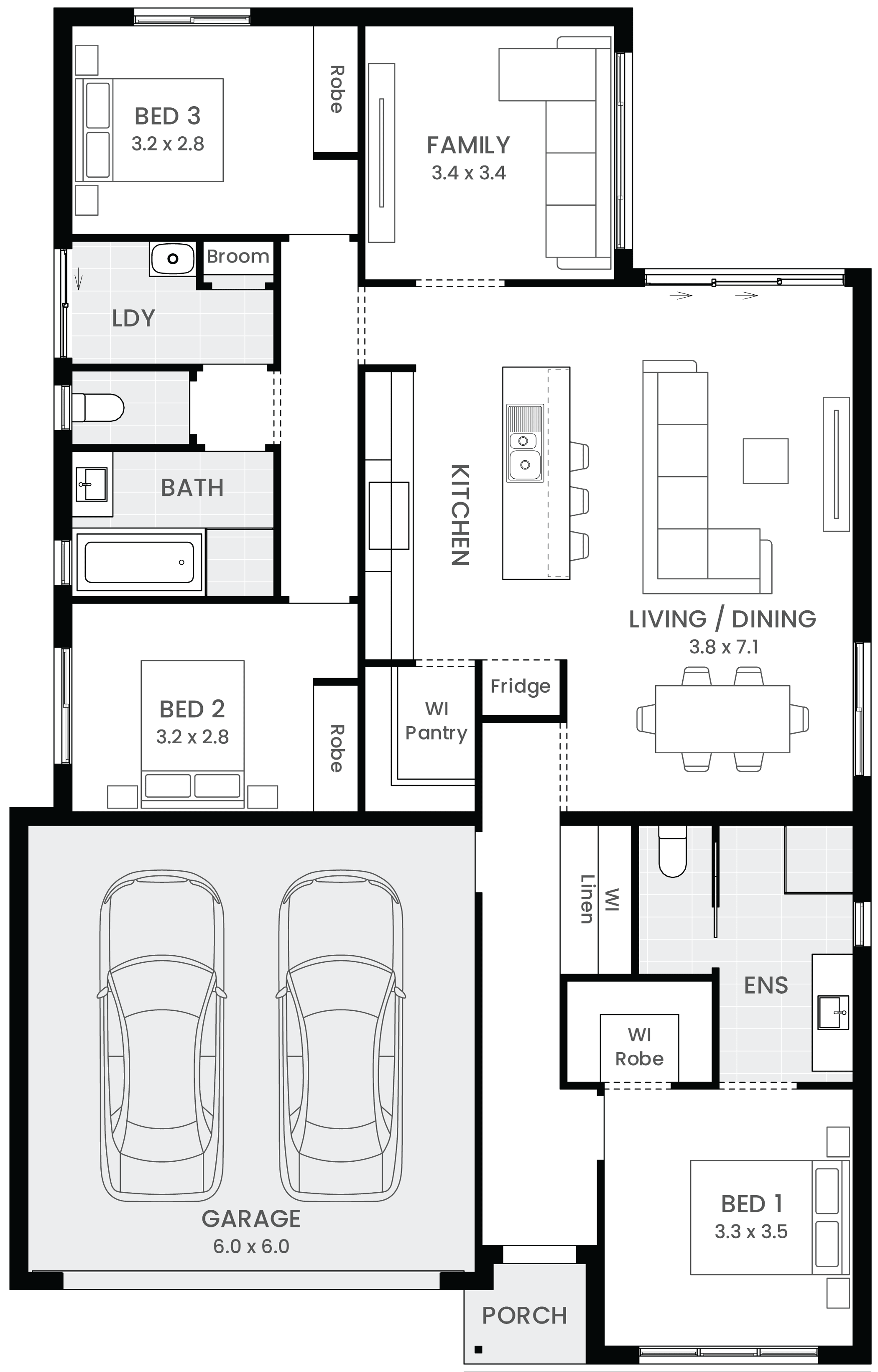

Albany 20 floor plan
Designer Collection

Albany 20

3
2
0
2
2
14.6m
House Dimensions
House Width: 11.6m House Depth: 18.2m Total: 186.6m²
Room Dimensions
Living/Dining
3.9m x 7.1m
Family
3.4m x 3.4m
Bed 1
3.3m x 3.5m
Bed 2
3.2m x 2.8m
Bed 3
3.2m x 2.8m
Garage
6m x 6m

Inclusions

External

  • Your choice of Austral bricks from Homestead, Access (selected colours) or Yarra range
  • MGP10 Pine framing to all structural components, 90x35 framing to internal and external walls. Timber composite engineered roof trusses
  • 450mm perimeter eaves
  • Colorbond roof, fascia and guttering in choice of colours
  • Insulation - R2.0 batts to walls + R4.1 batts to ceilings
  • Dowell Windows. Available colours monument, pearl white gloss, ultra silver, woodland grey, black, surfmist.

Balconies and decks

  • Refer to plan for external handrail detail
  • Refer to selected home plans for balcony construction details and finishes
  • Balcony surfaces to be Modwood decking unless otherwise specified or drawn
  • Where required or requested, decks and access stairs will be treated pine including handrail, unless otherwise specified

Stairs

  • Carpeted stairs, MDF treads and riser
  • Slimline stairwell expansion joint
  • 1000mm plastered dwarf wall balustrade

External Doors

  • 920mm Hume ALL Newington range paint finish entry door with clear glass inserts
  • Colorbond sectional panel lift door in your choice of colour with auto controller
  • Aluminium standard entry door frames in your choice of builders inclusion colours
  • Trilock contemporary or traditional leverset in bright chrome or satin
  • Flush panel external grade door to garage with Gainsborough Bela, Adel or Tristan lever set in bright chrome or satin
  • Aluminum hinged door frames in your choice of powder-coat finishes

Electrical

  • TV connection point: 1 to Living
  • Single phase meter box
  • Clipsal Iconic Vivid white light switches and power points. 1x 2 way switch
  • Hard wired smoke detectors
  • Haier Tempo 7.0KW wall-mounted split system
  • 2x double power points to bedroom 1
  • 1x double power point to all other bedrooms
  • Single power point for appliances
  • 1x batten light point & bulb to each room (inc outdoor living)
  • 1x LED to front porch
  • 1x LED to the laundry eave or single floodlight (design specific)
  • 1x exhaust fan over each shower
  • 1x exhaust fan to internal WC or Laundry (without window)
  • 1x 4 heat/fan/light to each bathroom

Kitchen

  • WIP/Pantry shelving- 1 x 440mm (D) White melamine carcuss with middle shelf and 1 x 330mm (D) white melamine carcus with middle shelf
  • White melamine cupboard internal finish
  • Choose from a wide range of Polytec melamine matt finish cabinetry. Includes up to two colours.
  • Selection of quality kitchen cabinet handles from builders inclusion range
  • 20mm pencil edge stone benchtop in builders inclusion range
  • Posh Solus MkIII 1.3 end bowl overmount sink
  • Mizu Drift sink mixer – polished chrome
  • Ceramic tiled splashback from Builder’s Range
  • Plaster bulkhead included (includes fridge space)
  • Overhead cabinetry either side of rangehood with plaster bulkhead
  • Microwave shelf with single power point

Appliance

  • Fisher & Paykel 90cm built-in oven (OB90S9MEX4)
  • Fisher & Paykel 90cm ceramic cooktop (CE905CBX2)
  • Fisher & Paykel canopy rangehood (HC90DCXB4) ducting included
  • Fisher & Paykel microwave inc. trim kit (OM25BLSX1)
  • Fisher & Paykel 60cm stainless steel Dishwasher (DW60FC1X2)
  • Rheem 250 litre electric hot water unit

Bathroom & Ensuite

  • Posh Domaine Island bath (design specific)
  • 20mm pencil edge stone bench top in builders inclusion range
  • Mizu Drift chrome tapware
  • Mizu drift single shower rail chrome
  • Mizu Drift Chrome wall Bath Set Posh
  • Domaine close coupled rimless toilet
  • Tiled shower base with Builder’s Range floor tiles central waste
  • Semi-Frameless shower screen in chrome
  • Joinery made melamine vanity unit and Gap semi inset basin
  • Mizu Drift chrome, double towel rail to bathroom, 2x robe hooks to ensuite, hand towel to powder room
  • Polished edge vanity mirror directly on top of vanity top to match the height of shower screens
  • Ceramic floor and wall tiles from standard Builder’s Range. 2000mm high tiling to shower enclosures, tiling above bath hob to align with the top of the vanity
  • Grab rail provision in bathroom, ensuite and WC in accordance with livable housing requirements

Laundry

  • Ceramic floor tiles from Builder’s Range
  • 100mm skirting tile
  • Base 45L laundry drop in tub with concealed bypass
  • Laundry base sink mixer MKII 6 star
  • 600mm tiled splashback behind tub

Internal

  • Linen shelving - 4 x white melamine
  • Robes/ WIR- shelf with hanging rail
  • 42x12mm Bevelled MDF architraves and 67x12 Bevelled MDF skirting with paint finish
  • 2400mm high ceiling heights
  • Square set to entry, entry hall, open living, kitchen, and 75mm cove cornice to remainder
  • 2040mm high flush panel internal swinging doors throughout with paint finish
  • Internal lever set door, wardrobe and pantryhandles from the Choices series (chrome or satin)
  • Timber laminate flooring to entry, entry hall, kitchen, dining and open living
  • Builders range carpet to all bedrooms, secondary living spaces and hall
  • Cushioned door stops
  • 3 Coat expressions system to walls (x1 wall colour)
  • 2 Coat ultra semi gloss water based to doors/skirting/architrave (x1 colour)

Building Inclusions

  • 6 year structural warranty period
  • 90 day maintenance period
  • Built by qualified tradespeople
  • Development and building application fees
  • TAS water authority application fees
  • HIA new home building contract
  • Site soil investigation report by a geotechnical engineer
  • Structural engineer designed
  • ‘M’ classification concrete slab where applicable
  • Site contour survey by a registered surveyor
  • Energy assessment report
  • Appointment with your personal MyChoice Design Studio, Design Consultant. They will assist in selecting your colours, finishes

and electrical layout

Up to 10/lm of sewer, stormwater, and single-phase electrical connection
