Epitomises simplicity of design
Whether a first home or a downsizing option for empty-nesters, the Vasey is a clever design that packs a lot into a small footprint. The living/entertaining half of the home delivers a seamless, open-plan layout. From the vantage of the kitchen island bench, you can oversee all of the family’s activities – including those taking place in the outdoor living zone, accessed via sliding doors off the dining room. The master suite and two minor bedrooms all feature built-in robes and are serviced by the family bathroom with both a bath and separate shower. Additional storage is available in the laundry which also opens out to the rear of the property, making it a perfect spot to dump muddy boots when you come in from the gardening. The Vasey epitomises simplicity of design married with a clear vision of the needs of modern family living.
Show upgrades

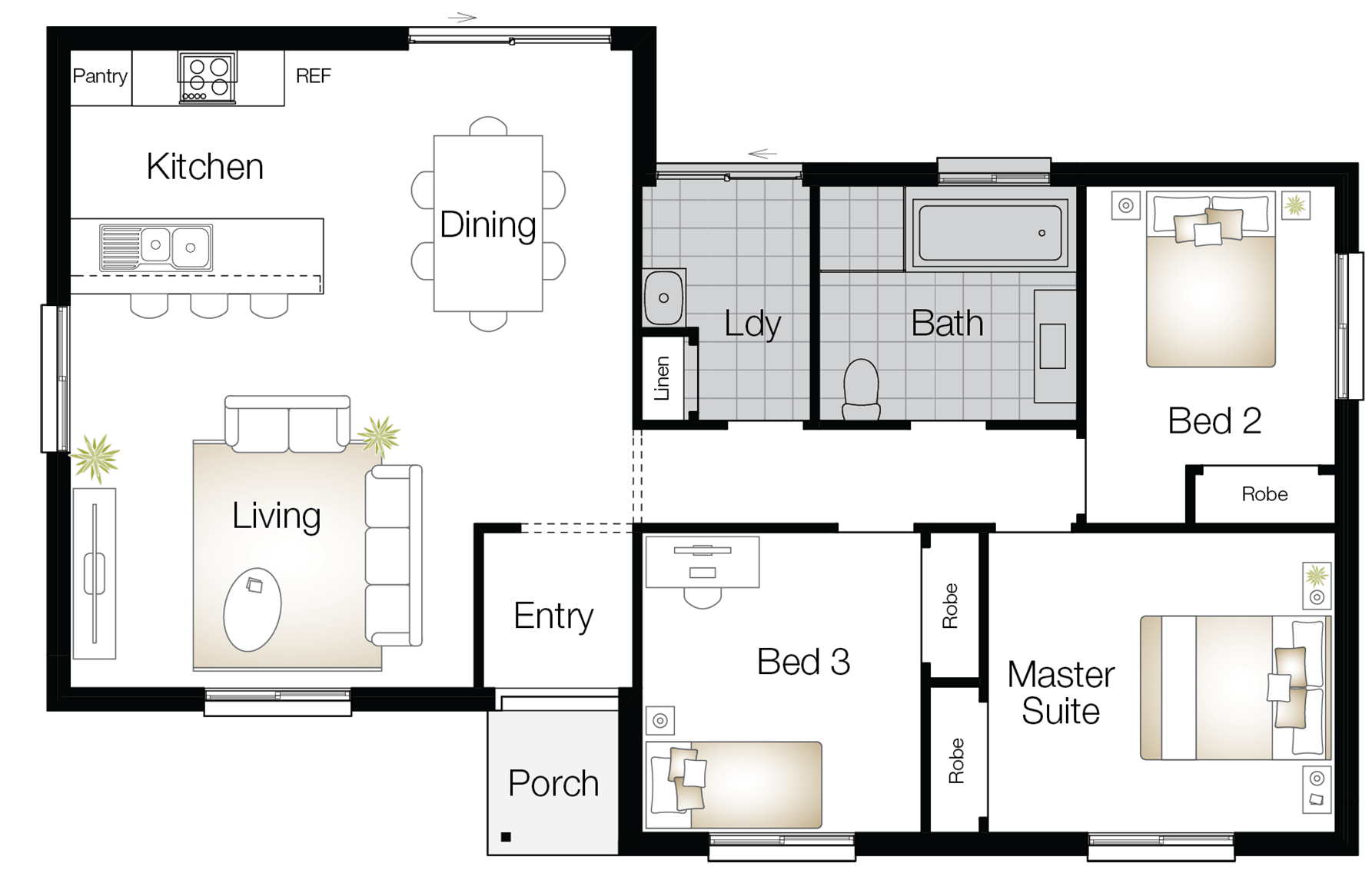

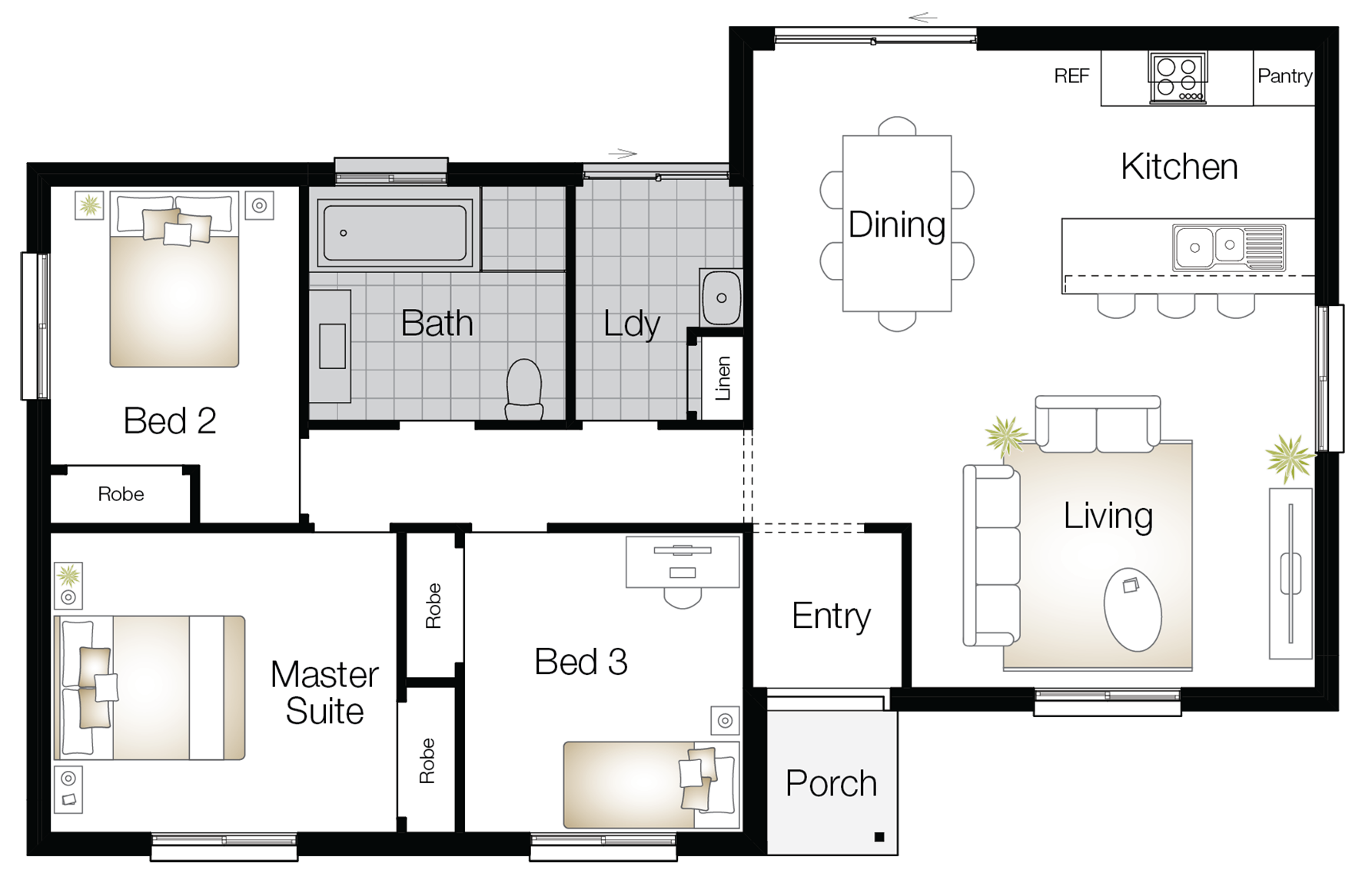

Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area does NOT include alfresco if optional.
3
Bed
1
Bath
0
Car
1
Storey
Block Width
16.96m
House Width
13.96m
House Length
8.82m
Total
105.06m²
Room Dimensions
Living
4.3 x 4.2
Dining
3.3 x 5.1
Master Suite
3.7 x 3.2
Bed 2
2.7 x 3.0
Bed 3
3.0 x 3.2
x

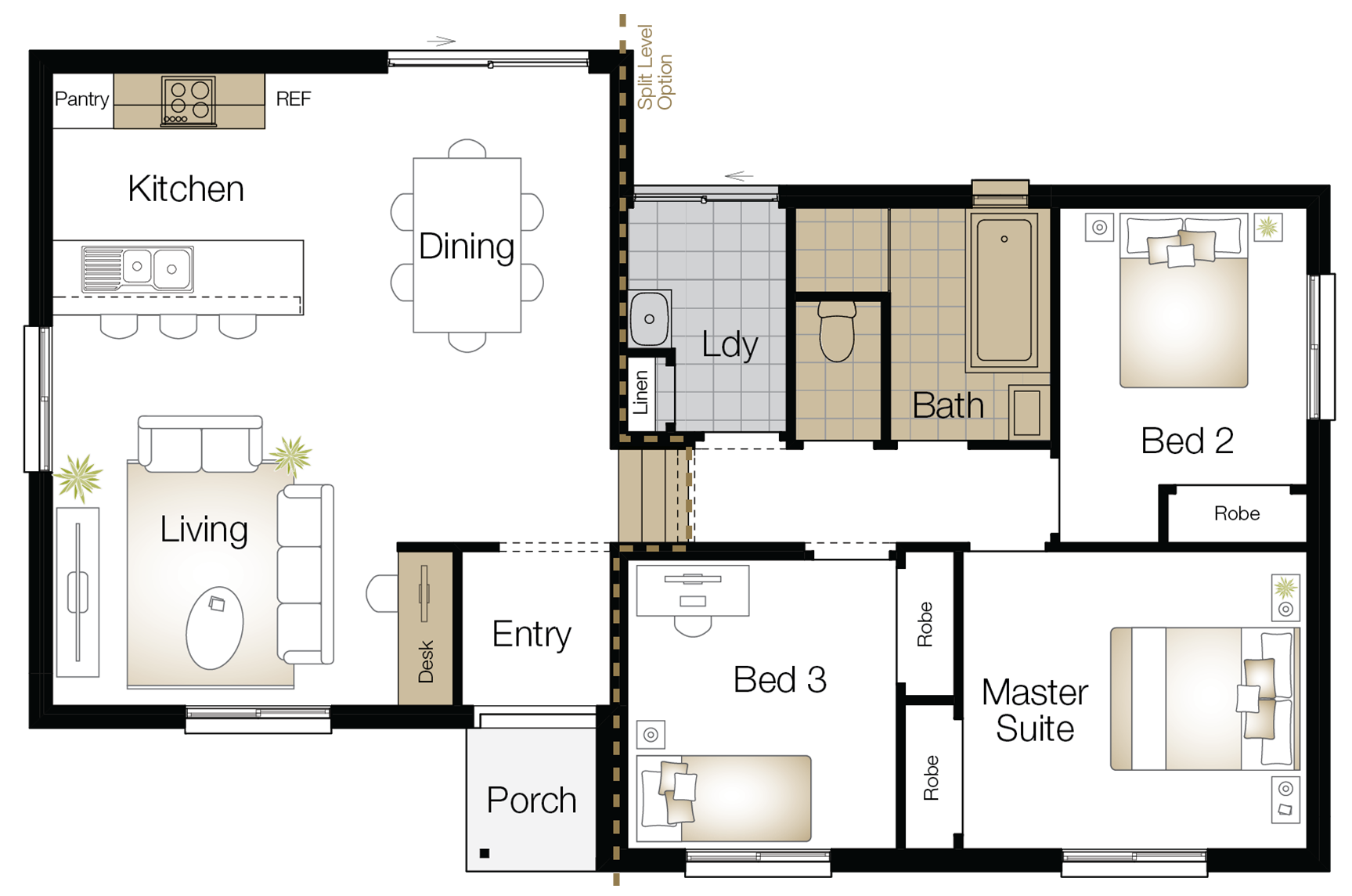

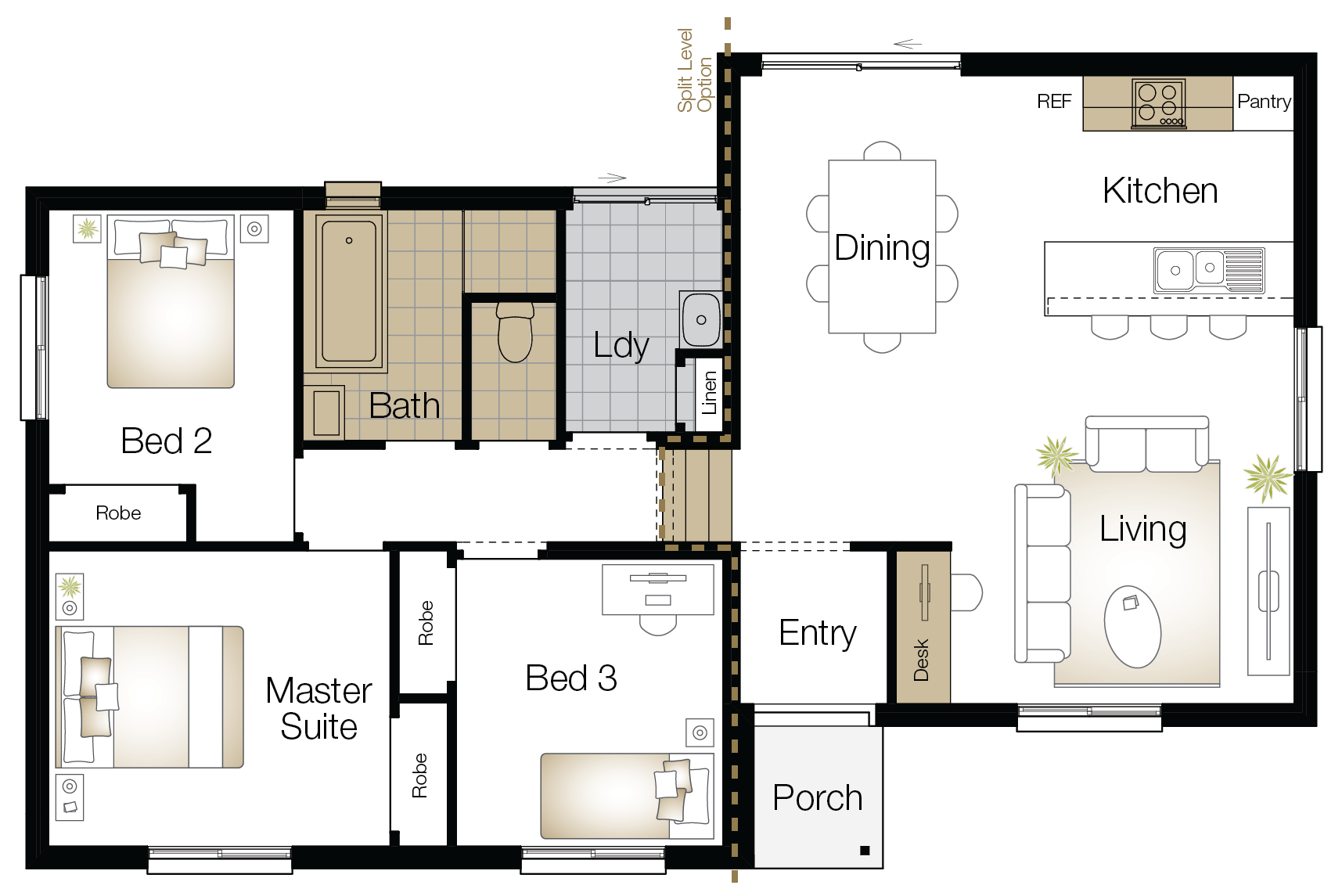

Show upgrades
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area does NOT include alfresco if optional.
3
Bed
1
Bath
0
Car
1
Storey
Block Width
16.96m
House Width
13.96m
House Length
8.82m
Total
105.06m²
Room Dimensions
Living
4.3 x 4.2
Dining
3.3 x 5.1
Master Suite
3.7 x 3.2
Bed 2
2.7 x 3.0
Bed 3
2.9 x 3.3
x
Note: Images of facades shown are a guide only. Material finishes, dimensions and colours shown are purely an expression of the artist and subject to change depending on availability and design updates. Please refer to our current price list and specifications for façade finishes allowed in published price.
Enquiry
Please complete the enquiry form and someone from our team will be in contact within 24 hours.
Alternatively you can give a building and design consultant a call on
1300 595 050.
Inclusions
White melamine cupboard internal finish
Choose from a wide range of standard melamine colours to your cupboards, includes up to two colours with matt finish.
Soft close hinges to cupboards only
Choice of handles from the MyChoice standard range out of Lincoln Century and Blumb ranges. Includes finger pull to overheads.
Laminate benchtops with 35mm pencil round edge
Mizu Drift Mk2 gooseneck Mixer
Posh Solus MkIII 1.3 end bowl overmount sink
Tiled splashback from extensive My Choice studio range.
Overhead cupboards including bulkhead to the rangehood surround
Microwave box with single power point and pot drawer under
Walk In Pantry / Pantry (design specific) includes 4 white melamine shelves - all at 450mm deep.
HAIER Ceramic Cooktop (HCE604TB2)
HAIER Seven Function Oven (HWO60S7EX1)
HAIER Slide Out Range Hood (HSH60RSX1)
HAIER Dishwasher (HDW15V2S1)
Rheem 250L single hot water electric system
Built-in wardrobes with top shelf and hanging rail
Linen cupboard with full shelving (4 shelves)
42x12mm Bevelled Primed MDF architraves and 67x12 Bevelled Primed MDF skirting with paint finish
2400mm high ceiling heights
75mm classic cove cornice throughout
2040mm high flush panel internal swinging doors throughout with paint finish
Lockwood Internal Lever set from the Velocity Series throughout with privacy locks to all wet areas.
Cushioned door stops
Taubmans ‘Endure’ to all internal walls – 3 coat system
Flat acrylic to ceilings
600mm x 600mm concealed manhole
MyChoice range of carpet to all bedrooms, home theatre, main living areas, dining and hall.
MyChoice range of timber look laminate flooring to entry and kitchen only.
Laundry - Base 42L freestanding laundry tub.
Laundry - Posh Bristol MkII chrome sink mixer
Laundry - Wide selection of ceramic tiles to floor and walls selected from MyChoice Design Studio range. Skirting tile 100mm high and splashback above laundry tub 600mm high.
One TV connection point to Living.
Single phase meter box
Clipsal Iconic power point and light switches
Hard wired smoke detectors
Actron 8.0KW reverse cycle heat pump
One double power point to all rooms
One light point with batten holder & bulb per room
Single powerpoint to fridge, microwave space, dishwasher, rangehood & garage
Exhaust fans to all bathrooms & internal WCs
One phone point
One downlight to front porch
One batten holder to Alfresco/outdoor living (design specific)
One downlight to external door (e.g. laundry)
Externally ducted exhaust fans (where required for NCC compliance).
1 x 2in1 Heater & Light to each bathroom or ensuite
Base acrylic island bath with tiled hob surround
The Gap Semi Inset Basin 450x410 with tap hole and chrome universal basin with Chrome plug & waste.
Mizu Drift Mk2 Chrome Mixers. Includes basin mounted mixers, shower mixer and wall mounted bath mixer & spout set.
Posh Domaine Close Coupled rimless toilet suite with soft close quick release seat.
Tiled shower base including extensive range of MyChoice floor tiles with Pivot 2000mm High Aluminium Chrome Shower Frame.
Joinery made double portrait soft close door vanity with 16mm Polytec laminate benchtop selected from MyChoice Design Studio range to main bathroom & ensuite. (design specific)
Mizu Drift single towel rail to main bathroom, 2x robe hooks to ensuite (design specific) and toilet roll holder to all toilets.
Contemporary frameless mirror to sit above all vanities. Width to match vanity
Wide selection of ceramic floor tiles to wet areas selected from MyChoice Design Studio range (up to 450x450) 100mm tile to remainder of skirts (including beneath floating vanity/shelf) and separate WC areas. 2000mm high to showers
300mm high tiles above bath to match the top of the vanity
Posh Domaine Rail Shower in Chrome.
Choice of Austral face bricks (to front, sides and rear) selected from Homestead & Access (excludes Ash) ranges. Includes natural mortar with raked, ironed or flush joint.
MGP10 Pine framing to all structural components, 90x35 framing to internal walls. Timber composite engineered roof trusses
450mm perimeter eaves
Single glazed aluminum windows in a choice of powder-coat colour finishes
Standard clear glazing to all aluminium windows and sliding aluminium doors with translucent glazing to bathroom, ensuite and WC windows
Strammit slotted Quad Gutter & Fascia available in a range of Colorbond colours
Colorbond steel roofing including sarking. Includes 23 degree pitch.
Permeable wall wrap to all external walls. Insulation – R2.0 batts to walls + R4.1 batts to ceilings
Painted PVC downpipes to ground level
Two externals taps - to front and rear
Fully lined plaster ceiling to porch. Includes 1 downlight.
Fully lined plaster ceiling with 32x18mm timber beading to outdoor living (design specific).
Corinthian ‘Madison’ PMAD 104 paint finish entry door with clear glass inserts.
Lockwood 005 Deadbolt with a Lockwood passage handle from the Velocity range.
Flush Panel external grade door to garage with Lockwood Velocity range of door furniture. (Design specific)
Aluminum glass sliding door to Laundry (size design specific).
Sectional overhead automatic garage door with 2 remotes and 1 wall controller (size design specific).
Aluminum hinged door frames in your choice of powder-coat finishes
Our CustomerCare team are with you before and after the Statutory 90 Day Liability Period.
Development and building application fees
TAS water authority application fees
HIA new home building contract
Site soil investigation report by a geotechnical engineer
Structural engineer designed ‘S’ classification concrete slab where applicable
Site contour survey by a registered surveyor
Energy assessment report
You will have 3 opportunities to personalise your home with our qualified MyChoice Design Studio specialists, where you will make your internal, external and electrical choices to suit your style.
