Offering a harmonious layout
The Barcelona Two offers a harmonious layout separated into an entertaining and an accommodation zone, to successfully celebrate everyday life. Filled with light from the adjoining outdoor patio, the open plan living, dining, kitchen and family spaces interweave to create the ultimate place to come together. The kitchen will especially win your heart, perfectly positioned to overlook all the action from the convenient yet stylish island bench and only a few steps away from the door out to the garden.
Meanwhile, the three bedrooms remain to one side for peace and quiet, including a master suite that hosts a walk-in robe and ensuite, and all with easy access to the family bathroom.
Show upgrades

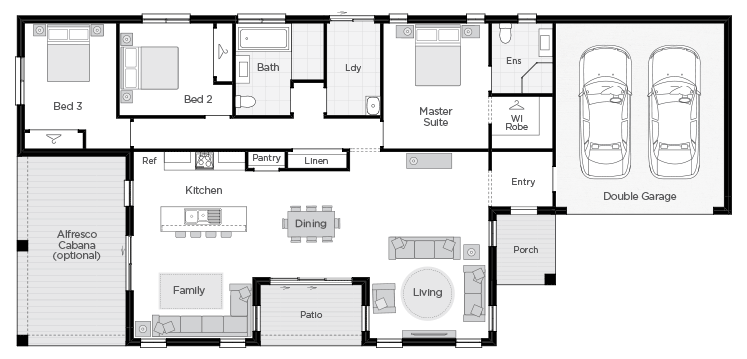

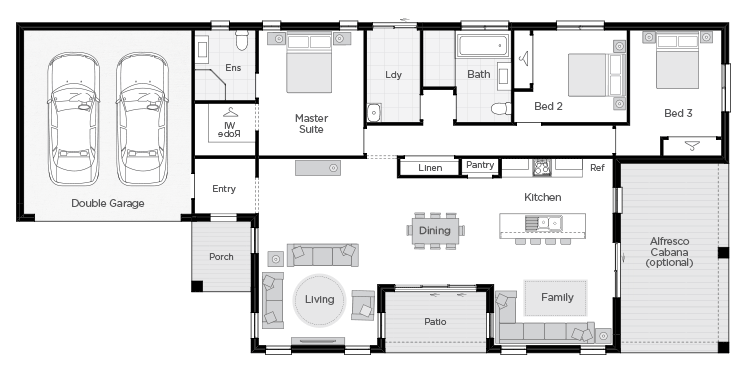

Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area does NOT include alfresco if optional.
3
Bed
2
Bath
2
Car
1
Storey
Block Width
26.31m
House Width
23.31m
House Length
10.76m
Total
200.39m²
Room Dimensions
Family
3.9 x 3.5
Dining
3.8 x 3.5
Living
3.9 x 6.1
Master Suite
3.5 x 4.1
Bed 2
3.1 x 3.0
Bed 3
3.0 x 3.5
Double Garage
5.5 x 6.0
Alfresco Cabana (optional)
3.6 x 6.2
Additional Features
- Patio
- Walk-In Robe
x

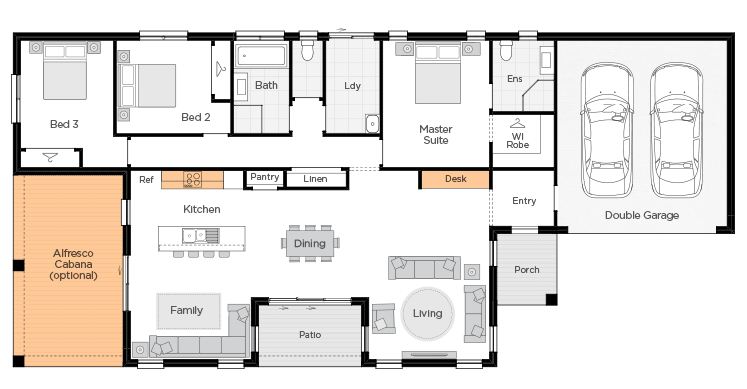

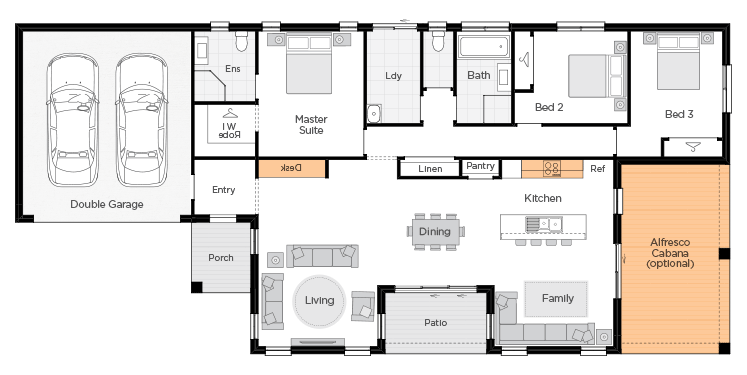

Show upgrades
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area does NOT include alfresco if optional.
3
Bed
2
Bath
2
Car
1
Storey
Block Width
26.31m
House Width
23.31m
House Length
10.76m
Total
222.33m²
Room Dimensions
Family
3.9 x 3.5
Dining
3.8 x 3.5
Living
3.9 x 6.1
Master Suite
3.5 x 4.1
Bed 2
3.1 x 3.0
Bed 3
3.0 x 3.5
Double Garage
5.5 x 6.0
Alfresco Cabana
3.6 x 6.2
Additional Features
- Alfresco Cabana
- Upgrade Kitchen
- Two way Bathroom
- Desk to Living
x
Enquiry
Please complete the enquiry form and someone from our team will be in contact within 24 hours.
Alternatively you can give a building and design consultant a call on
1300 595 050.
Inclusions
White melamine cupboard internal finish
Melamine cupboards with matt finish
Selection of quality kitchen cabinet handles
Laminate benchtops with 35mm pencil round edge
Belair 1 ¾ bowl stainless steel sink
Mizu Drift or Posh Polus sink mixer – polished chrome
Ceramic tiled splashback from Builder’s Range
Overhead cupboards adjacent to rangehood
Microwave shelf with single power point
Ilve Dishwasher (IVFSD61) Stainless Steel
Ilve Cooktop (ILC604B) Electric KeraBlack + glass with C-edges
Ilve (IVN900N) Canopy range hood stainless steel
Ilve (ILO6ODCX) Electric oven stainless steel
Thermann 250 litre electric hot water unit
Built-in wardrobes with top shelf and hanging rail
Linen cupboard with full shelving
42x12mm Bevelled MDF architraves and 67x12 Bevelled MDF skirting with paint finish
2400mm high ceiling heights
55mm classic cove cornice throughout
2040mm high flush panel internal swinging doors throughout with paint finish
Lockwood door handles throughout
Cushioned door stops
Taubmans ‘Endure’ to all internal walls – 2 coat system
Flat acrylic paint to ceilings
Laundry- Belair 45L stainless steel tub and steel cabinet – white
Laundry- Ceramic floor tiles from Builder’s Range, 600mm tiled splashback behind tub and 100mm skirting tile
Laundry- Posh polished chrome mixer tap
TV connection point: 1 to Living
Single phase meter box
Clipsal Iconic power point and light switches
Hard wired smoke detectors
Daikin 6KW reverse cycle heat pump
2x double power points to Master Suite
1x double power point to all other bedrooms
1x light point to each room
5x single power points
1x 4 heat/fan/light to each bathroom
Base acrylic 1650 bath in tiled hob
Mizu Drift or Posh Polus polished chrome mixers
Posh Domaine close coupled rimless toilet
Tiled shower base with Builder's Range floor tiles
Designer vanity with ceramic top
Gen X single rail polished chrome towel rail & toilet roll holder
Polished edge vanity mirror directly on top of vanity top to match the height of shower screens
Ceramic floor and wall tiles from standard Builder’s Range. 2000mm high tiling to shower enclosures, tiling above
Your choice of Austral bricks from Homestead, Access (selected colours), Everyday Life or Yarra range
MGP10 Pine framing to all structural components, 90x35 framing to internal and external walls. Timber composite engineered roof trusses
Insulation - R2.0 batts to walls + R4.1 batts to ceilings
450mm perimeter eaves
Colorbond roof, fascia and guttering in choice of colours
Colorbond roller door in your choice of colour with auto controller
Double Glazed aluminum awning windows in a choice of powder-coat colour finishes
Standard clear glazing to all aluminium windows and sliding aluminium doors with translucent glazing to Bathroom, Ensuite and WC windows
Corinthian Solidcarve paint finish front door with Lockwood entrance set
Aluminum standard entry door frames in your choice of powder-coat colours
12 year structural warranty period
90 day maintenance period
Development and building application fees
TAS water authority application fees
HIA new home building contract
Site soil investigation report by a geotechnical engineer
Structural engineer designed ‘S’ classification concrete slab where applicable
Site contour survey by a registered surveyor
Energy assessment report
Appointment with your personal MyChoice Design Studio, Design Consultant. They will assist in selecting your colours, finishes and electrical layout
